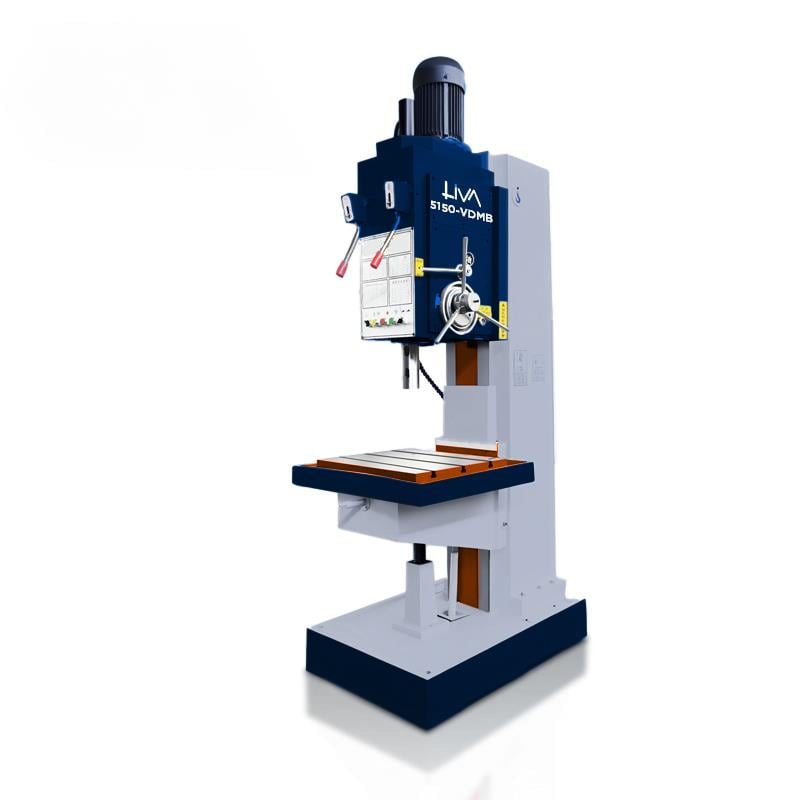

5150-VDMB Vertical Drilling Machine
5150-VDMB Vertical Drilling Machine

5150-VDMB Vertical Drilling Machine

Brand : Liva
Stock Code (5150-VDMB)
Est. Delivery Time45-60 Days After O.C.
Shipment Place Turkiye
Payment Terms% 50 O.C, % 50 B.S.
Made In
Min. Order Qty.1 Pcs.
Warranty1 Year
Delivery TermsEx-Works - Turkiye
Stock Amount : 0

Note: The prices seen here are retail sales prices. Special discounts may apply to prices for bulk purchases. In addition, the discounted prices to be applied for dealers may be different.

Import duties and customs charges and value-added taxes for products originating outside of Turkey It is not included in the price. This applies to customers who will buy from within Turkey.

The prices mentioned here are not door-to-door delivery prices. For each country buyers who will buy in their own country they are responsible for the customs duty and other taxes to which they are subject according to their commercial laws.

Ürün stoklarımızda kalmamıştır.
Fiyat : 6,053.78 $
Max. drilling dia. mm 50
Max.feed resistance N 16000
Max. allowble torque N.m 350
Spindle taper - MT5
Spindle travel mm 250
Distance between spindle nose and table surface mm 750
Distance from spindle axis to column surface mm 350
Spindle box travel mm 200
Spindle speed range rpm 31.5-1400
Spindle speeds steps - 12
Spindle feed range mm/r 0.056-1.8
Spindle feed steps - 9
Table size mm 560*480
Table travel mm 300
Main motor power kw 3
Coolant motor power kw 0.09
Machine weight kg 1350
Overall dimension mm 1090*900*2530
