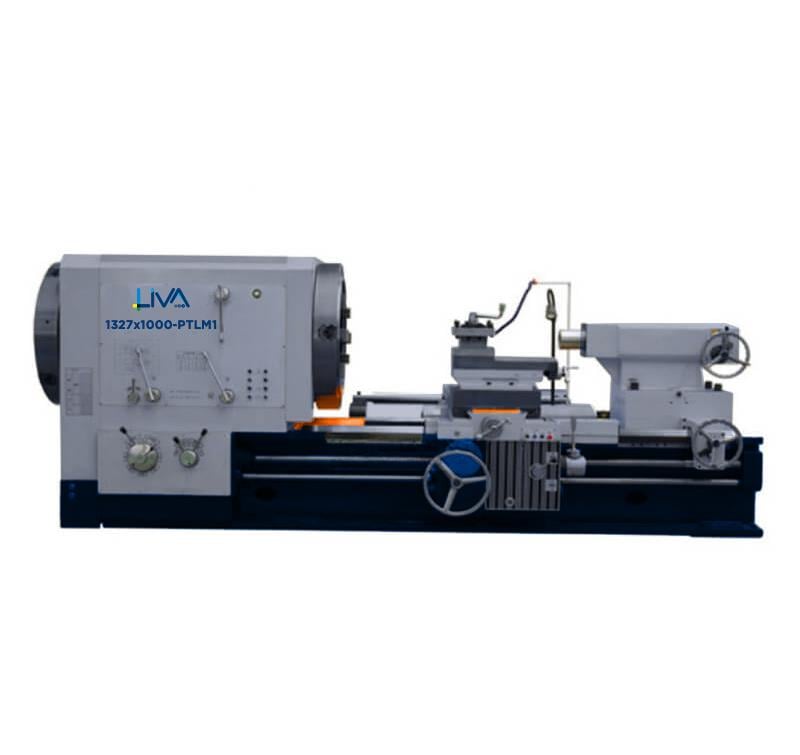

1327-CPTLM CNC Pipe Threading Lathe Machine

1327-CPTLM CNC Pipe Threading Lathe Machine

Brand : Liva
Stock Code (1327-CPTLM)
Est. Delivery Time45-60 Days After O.C.
Shipment Place Turkiye
Payment Terms% 50 O.C, % 50 B.S.
Made In
Min. Order Qty.1 Pcs.
Warranty1 Year
Delivery TermsEx-Works - Turkiye
Stock Amount : 0

Note: The prices seen here are retail sales prices. Special discounts may apply to prices for bulk purchases. In addition, the discounted prices to be applied for dealers may be different.

Import duties and customs charges and value-added taxes for products originating outside of Turkey It is not included in the price. This applies to customers who will buy from within Turkey.

The prices mentioned here are not door-to-door delivery prices. For each country buyers who will buy in their own country they are responsible for the customs duty and other taxes to which they are subject according to their commercial laws.

Item is out of stock.
Price : 70,467.59 $
Swing over bed mm 800
Swing over cross slide mm 480
Distance between centers mm 1000/1500/3000
Pipe threading range mm 130-270
Guideway width mm 600
Max. load capacity T 4
Spindle bore mm 280
Spindle speed steps - VF. 4 steps
Spindle speed range rpm 20-420
Chuck mm φ630 4-jaw manual
Turret/tool post - CNC turret 4 position
Tool shank size mm 32 x 32
X axis travel mm 420
Z axis travel mm 850/1350/2850
X axis rapid traverse mm/min 4000
Z axis rapid traverse mm/min 6000
Tailstock quill diameter mm φ120
Tailstock quill taper - MT6
Tailstock quill travel mm 250
Main spindle motor kW 15
Coolant pump motor kW 0.125
Weight for 1000 kg 6200
Weight for 1500 kg 6700
Weight for 3000 kg 7700
Dimension for 1000 mm 3600x1930x1900
Dimension for 1500 mm 4100x1930x1900
Dimension for 3000 mm 5600x1930x1900
